LumFlash200

835,00

(Coming Soon)

Scheduled to be released late 2022

Availability: 5 in stock (can be backordered)

Pricing
Quantity Discount Price
2 - 4 50,00  785,00
5 - 9 100,00  735,00
10 - 9999 150,00  685,00
SKU: 2002RM46ARM22000 Category: Tag:

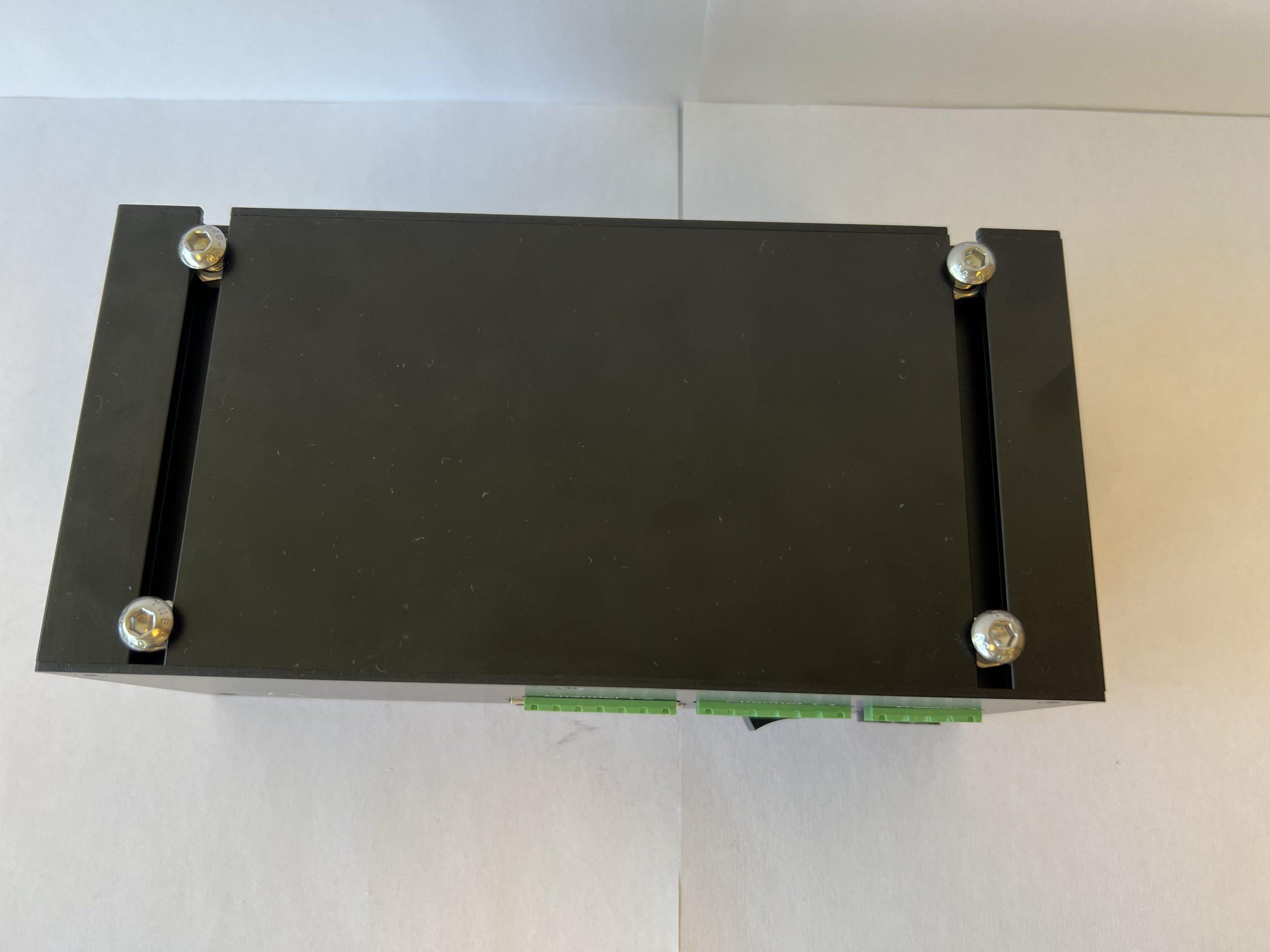

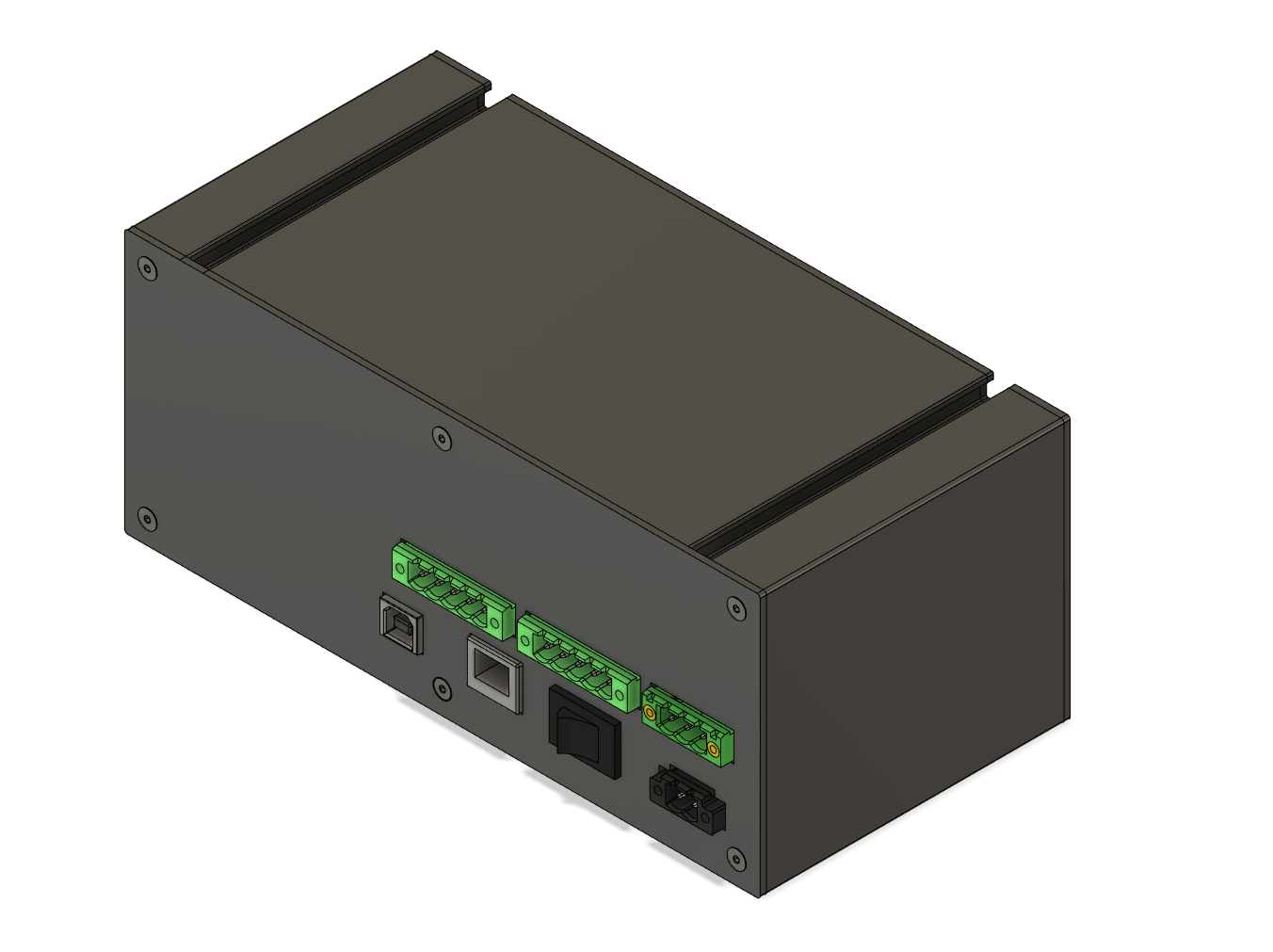

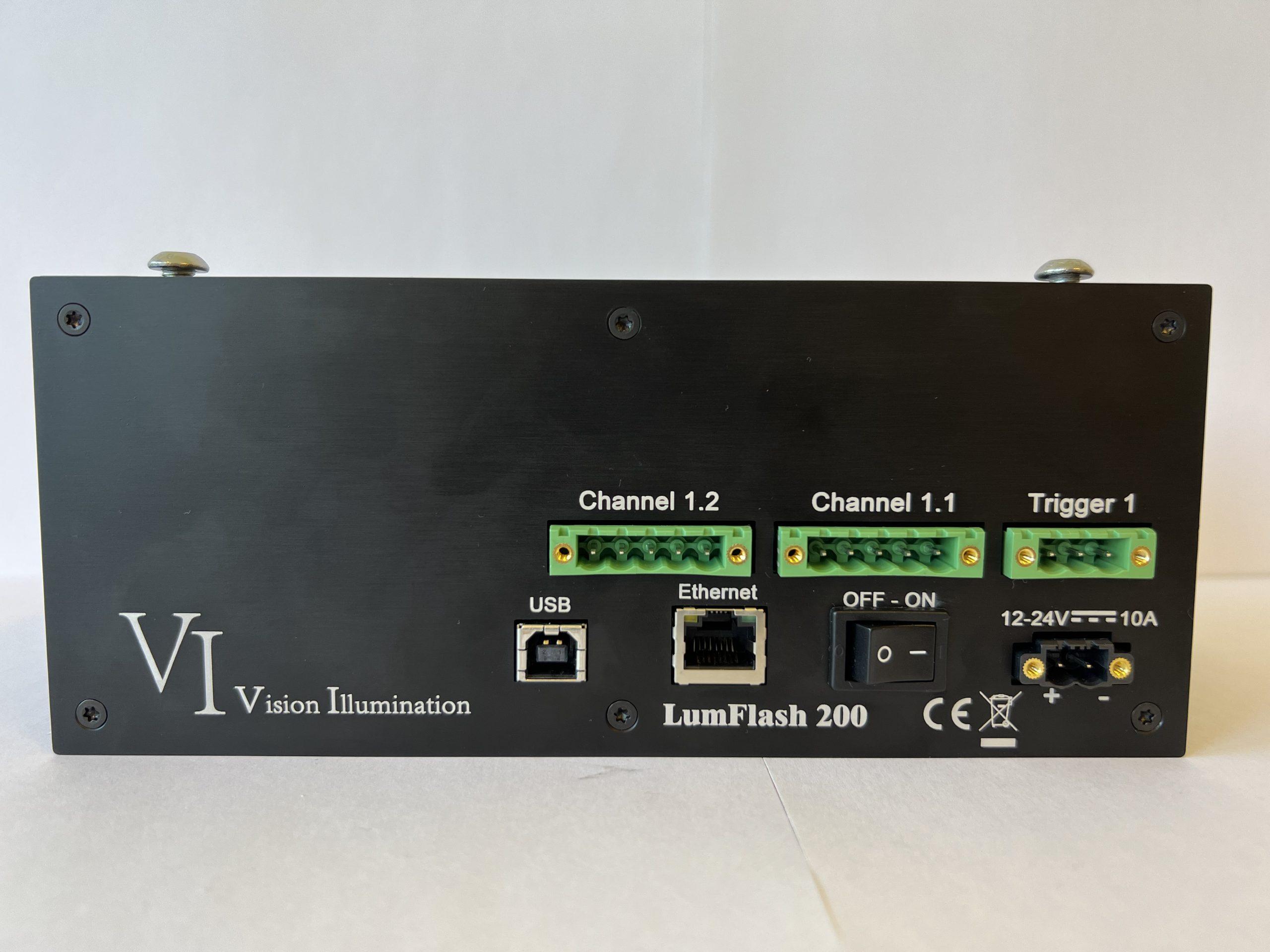

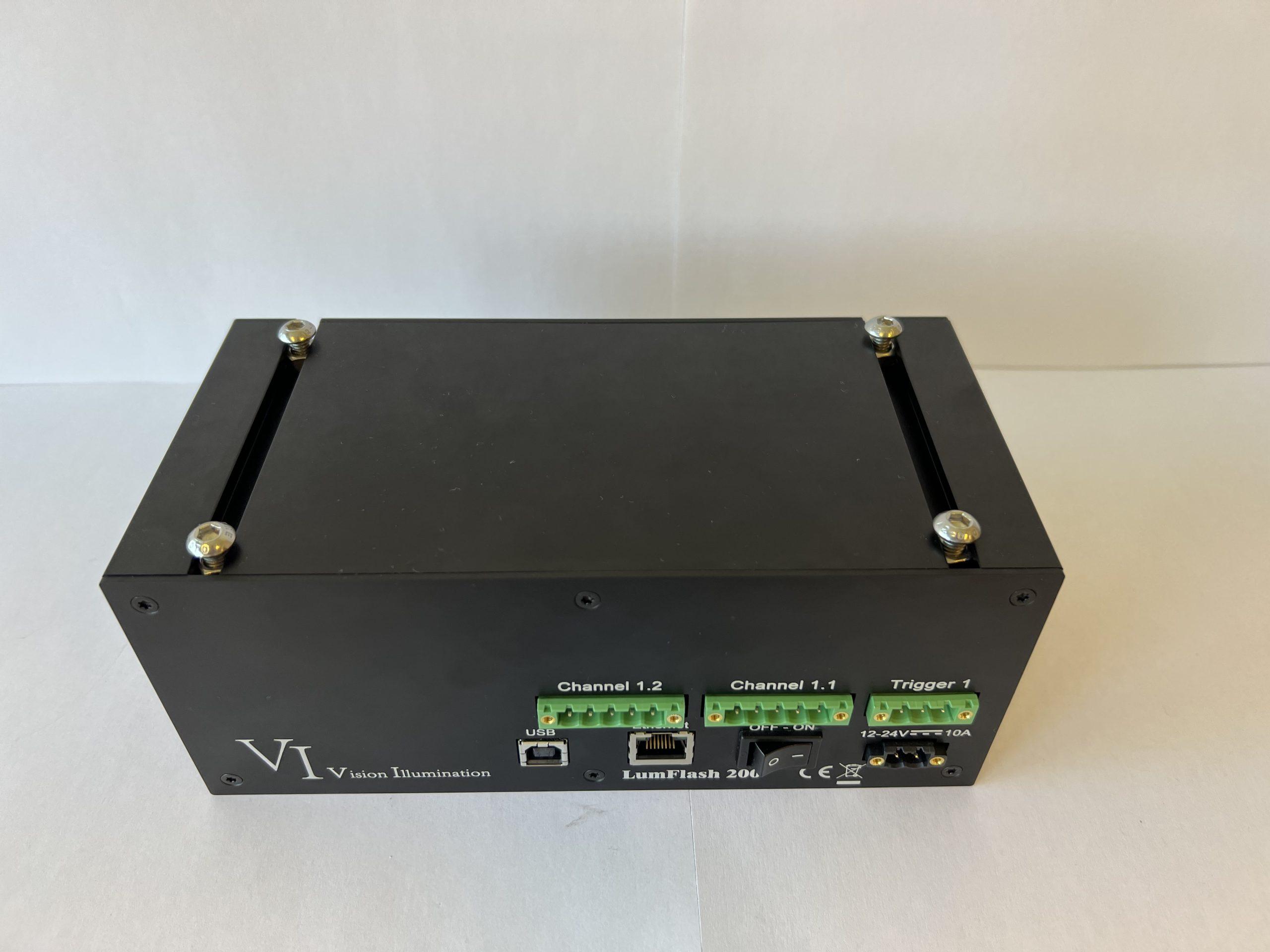

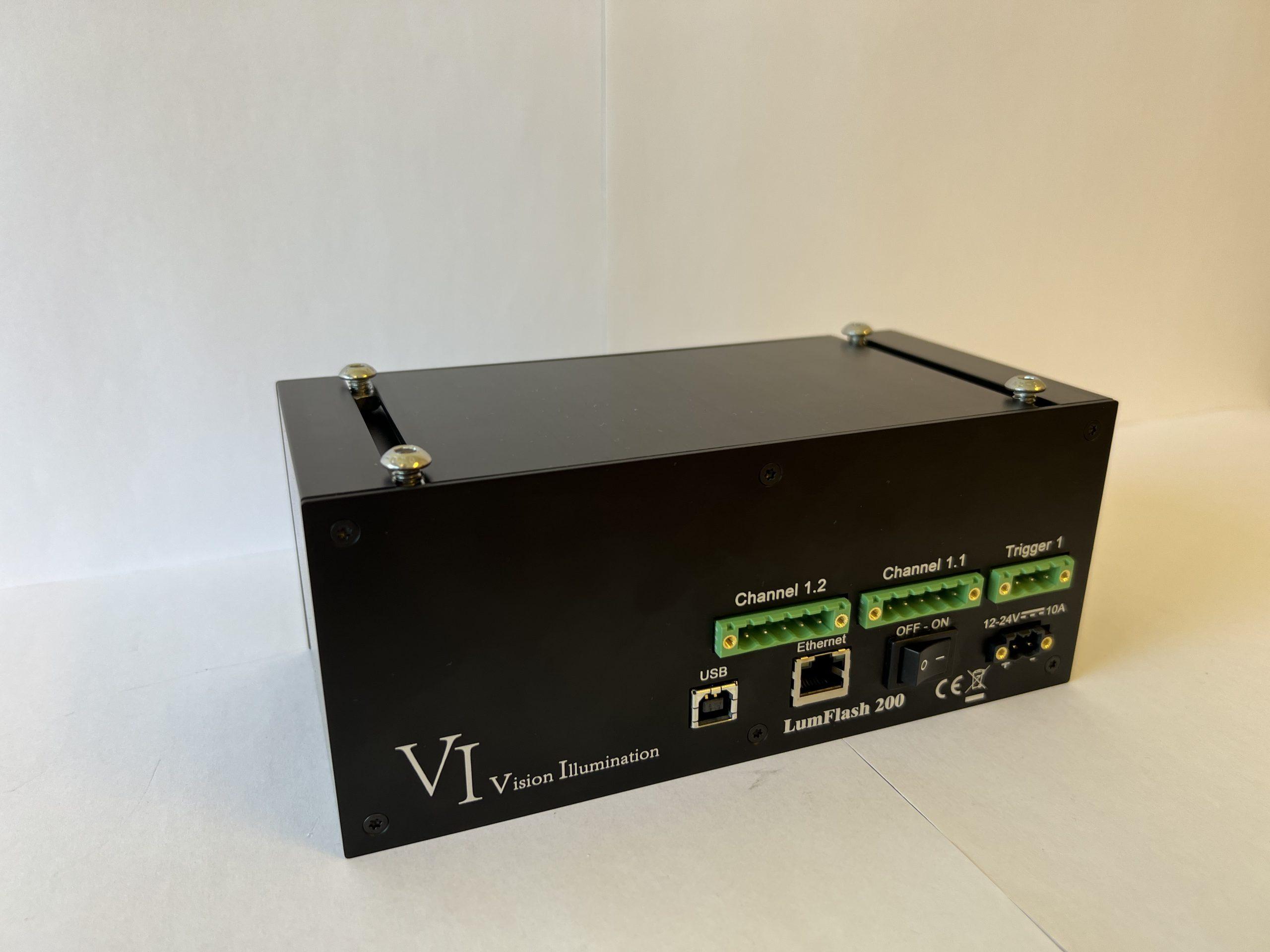

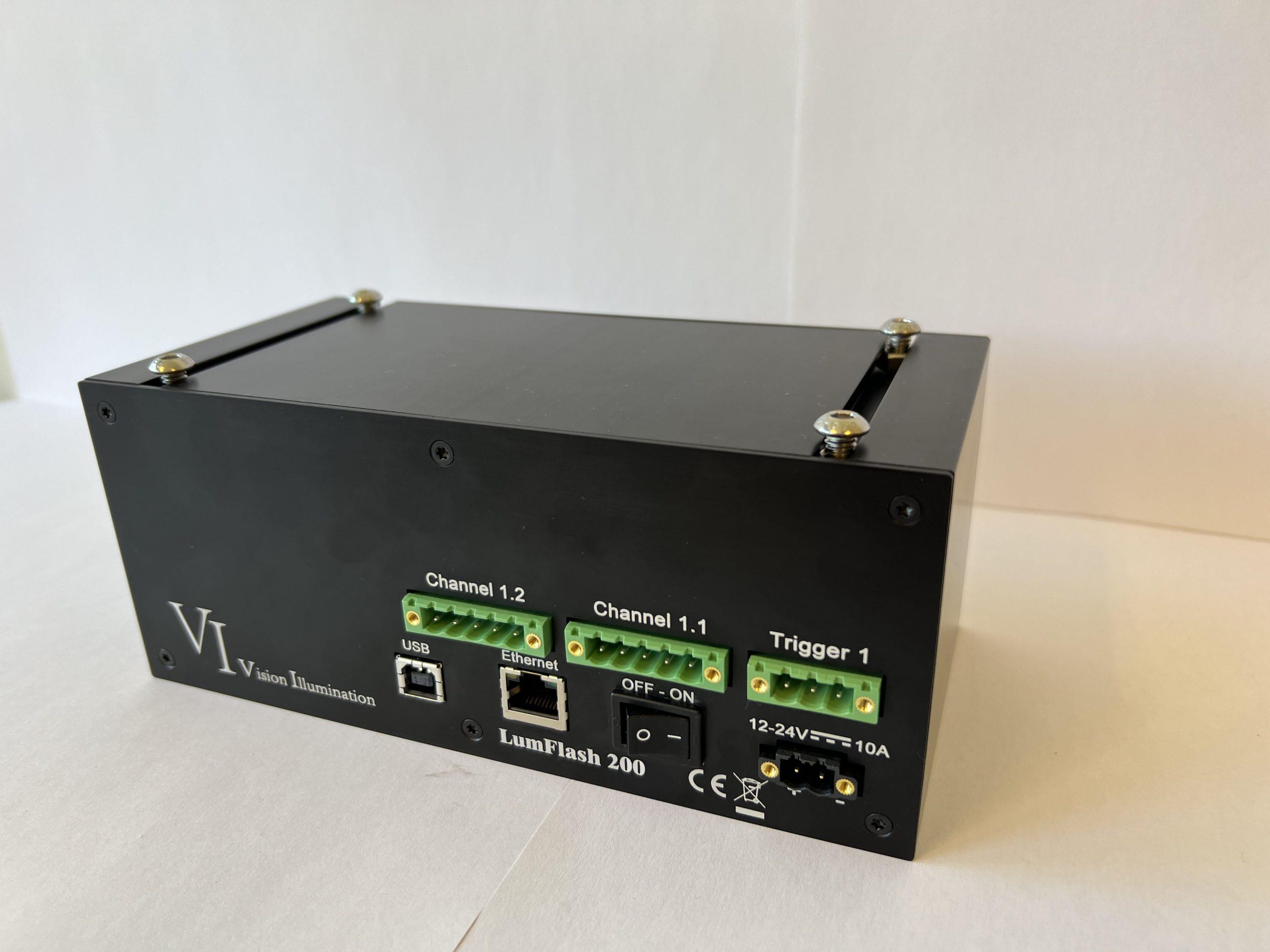

Lumflash200 Controller

Vision Illumination smart controller, for controlled light output from different lamps. It provides High Power and High Speed ​​precision light control.

It has a unique and advanced controller, where it calculates the light output of the lamps, due to the thermal resistance, current distribution and the ulinarity of an LED diode. Therefore, this controller is the best choice for imaging processing systems. To assure abselute perfections it is controlling the light output by both open loop og closed loop controlling where it communicates with sensors in our lamps.

This controller can also be used to control other lamps. Feel free to contact us here, we will get back to you with an offer to calculate the Tranfer Functions that can be used by the LumFlash controller.

Lumflash200 Features:

  • It can drive 8 lamps separately
  • RGB and RGB-W ready, with color and light control
  • High speed precision timers with an accuracy of 6ns
  • LumFlash200
  • Type number: 2002RM46ARM220
  • 8 Channels High Timing light controller
  • Total user safety as it is not possible to destroy the lamps. Since there are pre-programmed specifications in all our lamps.
  • Communications with lamps. (EEPROM and Temperature)



Download interface here:



Documents:

Weight 1 kg
Dimensions 300 × 200 × 120 mm
Type

2002RM46ARM22000

EAN:

Coming soon

Channels

Channels, 2

Vin

Input voltage, 12 – 24 V

Dimension

Dimension HxWxD, 100 x 205 x 100 mm

User Interface

Software GUI

Output current

Continuos: 4,5 A per channel, total 7,8 A max.
Pulsed: 4,5 A per channel, total 36 A max.

Output voltage

48 V

Processor

RM46

Processor Frequency

220 MHz

Name

LumFlash400

Mounting

DIN Rail, Mounting rails, Rack (Buy Rack Mount)

Compliance

CE, RoHS

Communications

USB
10/100 Ethernet

Pulse Width Range

1 us – 1s

Pulse Delay

1 us – 1s synchronous
15 ns – 1s asynchronous

Trigger

2 triggers
3 – 20 V
Programmable polarity

Lamps

All output can be setup individual and will be controlled to illuminated perfect.
1-Wire Communications with lamps. (EEPROM and Temperature)
